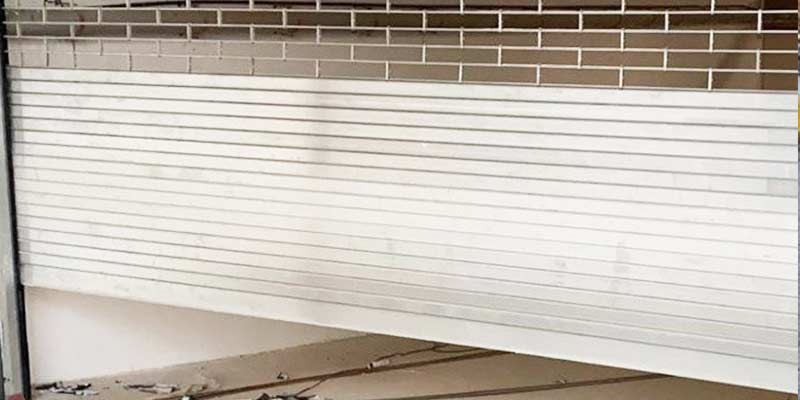

Automatic Rolling Shutter

Automatic Rolling Shutter
Introduction

Chordia Automation Range of Automatic rolling shutter doors are ideal for Residential, industrial and commercial use where security and aesthetics are a primary concern.

They are very versatile and come with Slat material options in epoxy coated galvanized steel profile, aluminium and Insulated aluminium profile which prevent the shutters from rusting and helps to provide them a long life. These Steel roller shutter doors are high end solution for any kind of application hence provide protection against burglary, vandalism and storms. These doors can be custom built to suit the requirements of windy areas & are meant to withstand harsh climatic conditions.

Product Highlights

  • Modern designs and countless combinations meeting the needs of modern architectural buildings.
  • The new generation of gates providing a solid, modern and discreet solution. Gates that are easy to install and do not need maintenance.
  • High standard aesthetics and simple lines forming a modern construction. Gates that may be combined with various materials such as perforated sheets, polycarbonate sheets and various architectural infill’s and elements.
  • Our goal is to continually develop Gates that can be installed in the most diverse exteriors, ranging from very modern and contemporary to more classical and even rustic.
Application
  • Residential
  • Commercial
  • Industrial
Barrier Finish Finish as per RAL Card.
*Shared by mail on request.
Drive Type Irreversible
Motor Type Traditional
Mains Power Supply
  • 230 V AC
  • 380 – 400 V AC
Motor Power Supply
  • 230 V AC
  • 380 – 400 V AC
No of Cycles Per day
  • ACM OPERATOR – 10 Cycles per day.
  • MFZ OPERATOR – 480 Cycles per day.
Limit Switch
    AGILIK 4 – up to 4 mtrs
  • Mechanical
  • Encoder
Max Door Dimension of Epoxy Coated G.I Shutter 11600 mm x 15000 mm
Max Door Dimension of Aluminum Shutters 6800 mm x 10000 mm
Max Door Dimension of Insulated Aluminum Shutters 6800 mm x 10000 mm
Opening and Closing Speed 0.2 mtrs/ Sec to 0.5 mtrs/Sec
Roller Shaft Heavy duty Mild Steel strong Tubular shaft with heavy duty bearing and without springs
Hood Cover As per requirement.
Emergency
  • Manual Chain operation
  • Hand Crank operation
Other Possibilities & Practicalities of Automation
  • Selection of step mode/ condominium function as per your requirement.
  • Programmable Sensing edge and obstacle detection system via control unit.
  • Integration with Home Automation System and building management system.
Accessories
  • Remote Control
  • Access Control
  • Photocells (Safety Sensors)
  • Flashing Lamp
  • Safety Edge
  • Inductive Loop Detection System
  • Key Switch
  • Push Button
  • Mobile Operation through GSM Controller
