Automatic Sliding Gates

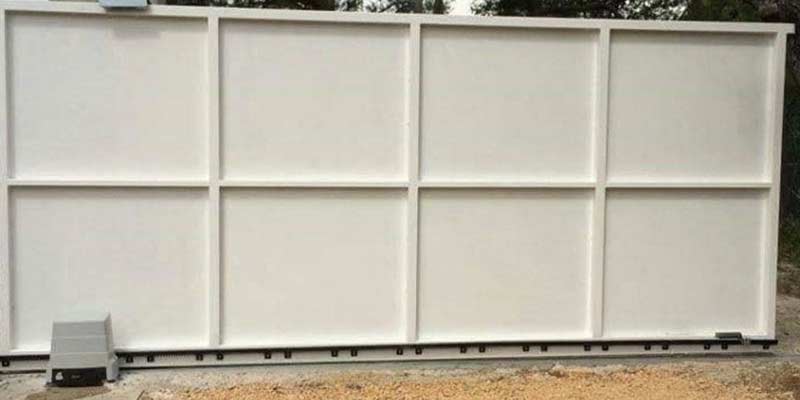

Automatic Sliding Gate
Introduction

Sliding Gates With Track

Chordia Automatic Gates are made for modern designs and countless combinations meeting the needs of modern architectural buildings. Gates made of Steel, aluminium & Stainless Steel in vertical structure combined with architectural elements, which renders them a true jewel placed at your entrance. High standard aesthetics and simple lines forming a modern construction.

It’s always good to make a stylish impression right from the start. In this case, as soon as guests and clients drive up to your property. Chordia Automatic gates represent a stylish nod to your personally high standards with their appealing design, modern technology, and first-class security features.Quality, beauty and comfort.

Conventional sliding gates are which use a ground mounted track for the gate wheels to move on. Automatic sliding gates are widely used because their linear movement means that they do not require large operating spaces.

Telescopic Sliding Gates are made to achieve an bigger clear opening as compared to a conventional sliding gate as there is substantially decrease in the back run required as compared to a single leaf gate.

An ingenious idea that incorporates a sliding curve gates, ideal for spaces that are restricted or tight. To achieve the maximum clear opening where the run back is very restricted, the Around the Corner curved gates are ideal.

The Cantilever Gate System is a very effective solution to a gate entrance where a smooth entryway is favoured. This sliding gate system does not use a track, but a carriage-based system instead.

Sliding Gates With Track

  • Access Control Long Range & Short Range.
  • Operation indicative LED Flashing Lamp.
  • Safety edge.
  • photocells
  • High speed gate drive.
  • Inductive loop systems.
  • Digital Loop System.
  • Matching Infills and Cladding.
  • Other Options on request.

Product Highlights

  • Modern designs and countless combinations meeting the needs of modern architectural buildings.
  • The new generation of gates providing a solid, modern and discreet solution. Gates that are easy to install and do not need maintenance.
  • High standard aesthetics and simple lines forming a modern construction. Gates that may be combined with various materials such as perforated sheets, polycarbonate sheets and various architectural infill’s and elements.
  • Our goal is to continually develop Gates that can be installed in the most diverse exteriors, ranging from very modern and contemporary to more classical and even rustic.
Model Code Application Drive Type Motor Type Mains Power Supply Motor Power Supply Maximum Leaf Lenght For Sliding Gates (Mtrs) Max Weight (kgs) Cycles Per Day Max Speed
BM30/303/HS High End Irreversible Brushless High Speed 230 V 24 V 8 Mtrs 400 kgs 500 27 Mtrs/Min
BH30/503/HS High End Irreversible Brushless High Speed 230 V 24 V 12 Mtrs 500 kgs 800 27 Mtrs/Min
BH30/603 High Intensity Irreversible Brushless Digital 230 V 24 V 12 Mtrs 600 kgs 130 12 Mtrs/Min
BH30/803 High Intensity Irreversible Brushless Digital 230 V 24 V 12 Mtrs 1000 kgs 130 12 Mtrs/Min
BG30/1003 /HS High End Irreversible Brushless High Speed 230 V 36 V 20 Mtrs 1000 kgs 800 27 Mtrs/Min
BG30/1403 R High End Reversible Brushless High Speed 230 V 36 V 20 Mtrs 1400 kgs 800 17 Mtrs/Min
BG30/1603 High Intensity Irreversible Brushless Digital 230 V 36 V 12 Mtrs 1600 kgs 1300 12 Mtrs/Min
BG30/1803 /HS High End Irreversible Brushless High Speed 230 V 36 V 20 Mtrs 1800 kgs 800 18 Mtrs/Min
BG30/2203 /HS High Intensity Irreversible Brushless Digital 230 V 36 V 12 Mtrs 2200 kgs 1000 10 Mtrs/Min
H30/643 Economical Irreversible Traditional 230 V 230 V 10 Mtrs 600 kgs 40 10 Mtrs/Min
R30/803 Economical Irreversible Traditional 230 V 230 V 10 Mtrs 800 kgs 40 10 Mtrs/Min
R30/1203 Economical Irreversible Traditional 230 V 230 V 10 Mtrs 1200 kgs 40 10 Mtrs/Min
G30/1803 Economical Irreversible Traditional 230 V 230 V 10 Mtrs 1800 kgs 40 10 Mtrs/Min
R30/2203 Economical Irreversible Traditional 230 V 230 V 10 Mtrs 2200 kgs 40 10 Mtrs/Min
Technology Descriptions
Safety of Automation Due to encoder management it allows a precise and safe control of slowdowns when opening and closing.
Practicality of Automation Automatically learns via the learning function of the control unit. Receiving radio with practical coupling
Installation of Automation Quick to install and start due to its simple functions and its height and depth adjustments.
Strength of Automation Base Strong due to its sturdy aluminium base treated with anti-corrosive paint and a reliable motor, mounted in dedicated housings and bearings.
Emergency
  • Equipped with a manual release lever with a safe and easy lock.
  • Possibility of integrating battery with the automation system.
Other Possibilities & Practicalities of Automation
  • Automatic closing after a selected pause time.
  • Automatic Gate closing after mains power outage.
  • Selection of step mode/ condominium function as per your requirement.
  • Option of partial or pedestrian opening in gate automation system.
  • Adjustable torque and speed.
  • Soft Start and Soft Closing.
  • Programmable Sensing edge and obstacle detection system via control unit.
  • Integration with Home Automation System and building management system.
Accessories
  • Remote Control.
  • Access Control.
  • Photocells (Safety Sensors).
  • Flashing Lamp
  • Safety Edge.
  • Inductive Loop Detection System.
  • Key Switch.
  • Push Button.
  • Mobile Operation through GSM Controller.
Approved standards
  • Directive 89/336/eec (emc directive).
  • Directive 73/23/eec (low voltage directive).
  • En 61000-6-3
  • En 61000-6-2
  • En 60335-1
  • En 60335-2-103
  • En 12453
  • En 12455
